Valves

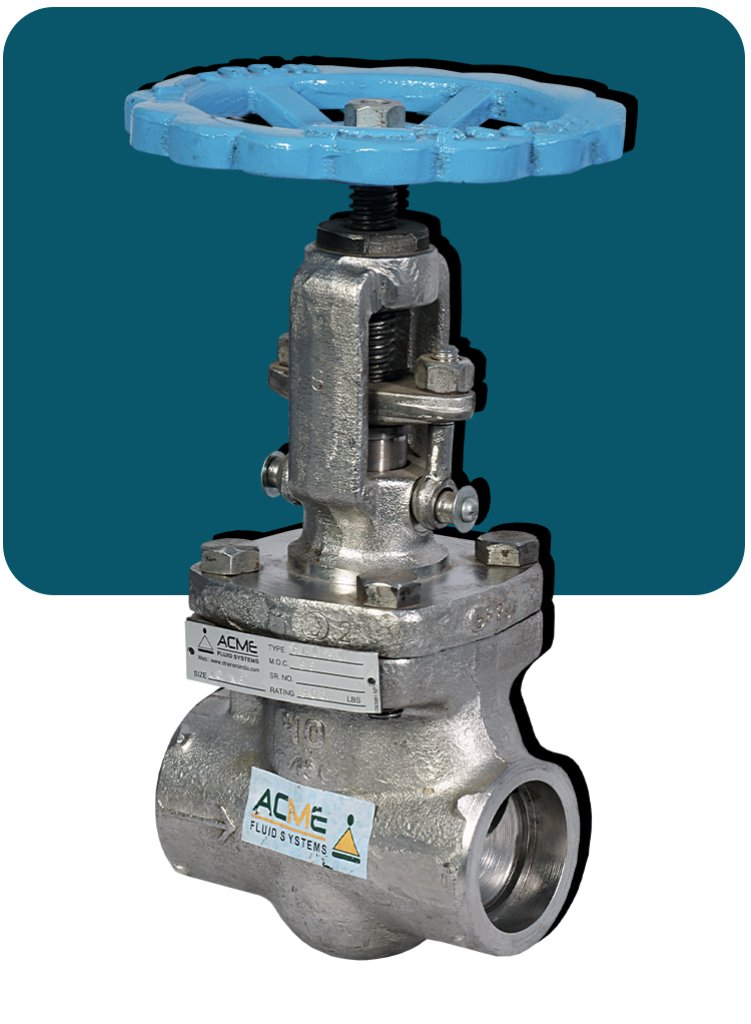

Globe Valve

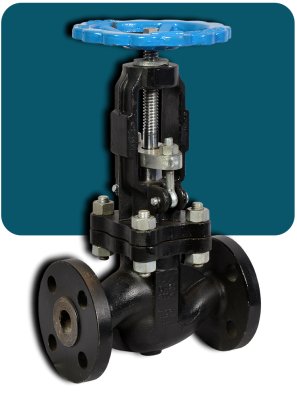

Globe Valve Flanged Globe Valve

Industrial Globe Valves are linear motion valves designed for precise flow regulation and reliable shutoff in demanding industrial environments. With a spherical body shape and internal baffle structure, globe valves provide excellent throttling capability and tight sealing performance. They are widely used in steam systems, oil & gas, chemical processing, power plants, and high-pressure service applications. Our globe valves are engineered for durability, accurate flow control, and long operational life under high temperature and pressure conditions.

Let’s Connect

Product Video

Why Choose Our Globe Valves?



  • Precision engineered for accurate flow control
  • Manufactured in compliance with international standards
  • High-performance sealing under extreme conditions
  • Custom-built solutions for critical applications
  • Comprehensive quality testing and inspection
  • Reliable technical support and timely delivery





Design Standard: API 602/BS 1873
Size Range: ½” – 24” (DN15 – DN600)
Pressure Rating: Class 150 / 300 / 600 / 900 / 1500 / 2500
End Connections: Flanged, Butt Weld, Socket Weld, Threaded
Body Materials: Carbon Steel (WCB), Stainless Steel (SS304/SS316), Alloy Steel, Duplex Steel
Operation: Handwheel, Gear Operated, Pneumatic Actuated, Electric Actuated





  • Excellent throttling and flow control capability
  • Tight shutoff with metal-to-metal or soft seating
  • Suitable for high-pressure and high-temperature service
  • Replaceable seat and disc design
  • Rising stem with outside screw & yoke (OS&Y) option
  • Backseat feature for stem sealing protection
  • Robust body construction for extended service life
  • Available with automation for remote operation
  • Bolted Bonnet Globe Valve
  • Pressure Seal Globe Valve
  • Cryogenic Globe Valve
  • Bellows Sealed Globe Valve
  • Angle Type Globe Valve
  • Y-Pattern Globe Valve
  • Hard-faced trim for abrasive service
  • PTFE or graphite packing
  • Locking device
  • Position indicator and limit switches
  • Custom coatings and linings



Parameter Specification
Nominal Size DN15 – DN600
Pressure Class 150 – 2500
Face to Face ASME B16.10
Flange Standard ASME B16.5 / B16.47
Butt Weld Ends ASME B16.25
Testing Standard API 598
Leakage Class ANSI/FCI 70-2
Mounting ISO 5211 (for actuated valves)
  • Steam Distribution Systems
  • Oil & Gas Refineries
  • Petrochemical Plants
  • Power Generation Stations
  • Chemical Processing Industries
  • Boiler Feedwater Systems
  • Cooling Water Systems
  • Marine & Offshore Applications
  • High-Pressure Utility Lines
