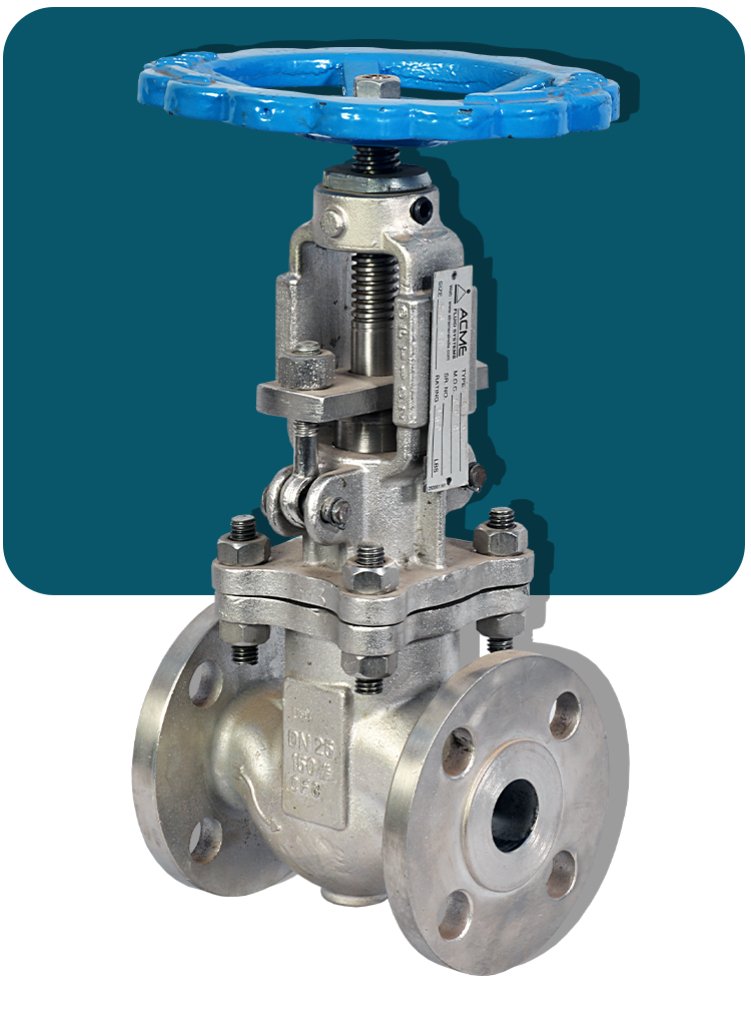

Gate Valve Flanged Gate Valve

Industrial Gate Valves – Flanged End are robust isolation valves designed for full-flow, straight-line media passage with minimal pressure drop. These valves are primarily used for on/off service in pipelines handling water, oil, gas, steam, and other industrial fluids. The flanged end connections ensure secure, leak-proof installation and easy maintenance in medium to large diameter piping systems. Engineered for durability and dependable shutoff performance, flanged gate valves are ideal for high-pressure and high-temperature industrial environments.

T-Type Flanged Drawing

Download

Let’s Connect

Product Video

Why Choose Our Flanged Gate Valves?

Manufactured in compliance with international standards
Designed for heavy-duty industrial applications
Superior sealing performance and durability
Custom-engineered solutions available
Strict inspection and hydrostatic testing
Reliable performance under demanding operating conditions

Valve Type: Gate Valve – Flanged End (Rising Stem / Non-Rising Stem)
Design Standards: API 600 / API 603 / API 6D
Face to Face: ASME B16.10
Flange Standard: ASME B16.5 / ASME B16.47 / DIN / BS
Size Range: 1/2” – 24”
Pressure Rating: Class 150# to 1500#
Body Materials: Cast Carbon Steel (WCB), Stainless Steel (CF8/CF8M), Alloy Steel, Ductile Iron
Operation: Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated

Full bore design for minimal pressure loss
Tight shutoff for isolation applications
Strong flanged connections for secure pipeline installation
Rising stem (OS&Y) design for visual position indication
Replaceable seat rings and wedge
Backseat feature for added stem sealing safety
Heavy-duty construction for long service life
Suitable for high-pressure and high-temperature systems
Compatible with automation systems

Solid Wedge Gate Valve
Flexible Wedge Gate Valve
Split Wedge Gate Valve
Outside Screw & Yoke (OS&Y) Design
Pressure Seal Bonnet Design
Cryogenic Gate Valve
NACE MR0175 compliant materials
Locking device
Bypass arrangement
Fire-safe design
Custom coatings (Epoxy, PTFE lining, Anti-corrosion coating)

Parameter	Specification
Nominal Diameter	DN50 – DN600
Pressure Class	150# – 2500#
Design Standard	API 600 / API 6D
Face to Face	ASME B16.10
Flange Drilling	ASME B16.5 / B16.47
Testing Standard	API 598
Leakage Standard	ISO 5208
Mounting Pad	ISO 5211 (for actuated valves)

Design Standard : API 600/BS 1414/API 603/API 6D
Features : Bolted Bonnet, OS & Y Construction, Flexible Wedge/Solid Wedge, Renewable Seat/Welded Seat Ring
Testing Standard : API 598
Pressure Rating : 150# to 1500#
Size : 1/2" to 24" Flanged Ends/Butt Weld Ends
MOC : Carbon Steel/Stainless Steel or Alloy Steel
Operation : Manual/Pneumatic/Electrical
