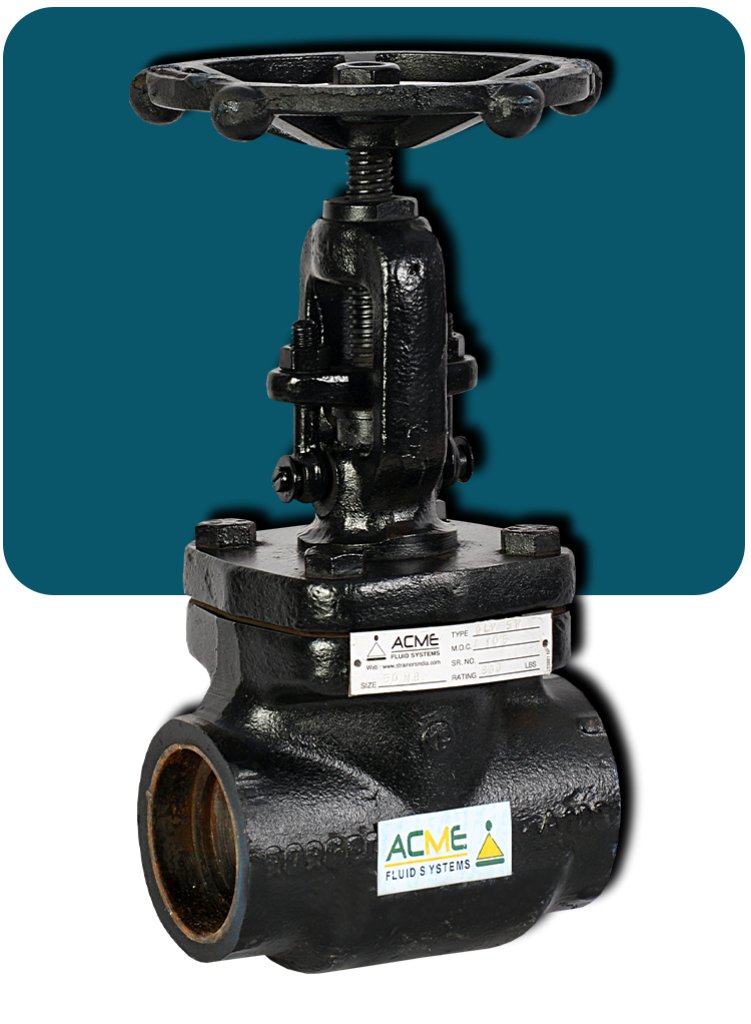

Forged Gate Valve Screwed/Socketweld Gate Valve

Industrial Forged Gate Valves are high-performance isolation valves designed for high-pressure and high-temperature applications. Manufactured from forged steel for superior strength and structural integrity, these valves provide tight shutoff and long service life in critical process systems. Forged construction ensures enhanced mechanical properties, making them ideal for demanding industries such as oil & gas, petrochemical, power generation, and refineries. Our forged gate valves are engineered in accordance with internationally recognized standards to deliver dependable performance under extreme operating conditions.

Product Video



  • Design Standard : API 600/BS 1414/API 603/API 6D
  • Features : Bolted Bonnet, OS & Y Construction, Flexible Wedge/Solid Wedge, Renewable Seat/Welded Seat Ring
  • Testing Standard : API 598
  • Pressure Rating : 150# to 1500#
  • Size : 1/2" to 2" Screwed End/Socket Weld Ends
  • MOC : Carbon Steel/Stainless Steel or Alloy Steel
  • Operation : Manual/Pneumatic/Electrical
  • High-strength forged steel body for durability
  • Compact design suitable for limited space installations
  • Full port or reduced bore options
  • Reliable tight shutoff performance
  • Rising stem (OS&Y) design available
  • Backseat feature for stem seal protection
  • Low emission packing option available
  • Designed for high-pressure and high-temperature service
  • Long operational life with minimal maintenance
  • Bolted Bonnet Forged Gate Valve
  • Welded Bonnet Forged Gate Valve
  • Pressure Seal Forged Gate Valve
  • Cryogenic Design
  • Extended Bonnet for low-temperature service
  • Hard-faced trim for abrasive applications
  • Locking device
  • Bellows Sealed Design
  • NACE MR0175 compliant materials
  • Custom coatings and special alloy construction
Parameter Specification
Nominal Size DN15 – DN50
Pressure Class 150# – 1500#
Face to Face ASME B16.10
End Connections ASME B16.11 / B1.20.1 / B16.25
Testing Standard API 598
Body Material Standards ASTM
Mounting ISO 5211 (for actuated valves)



  • Design Standard : API 600/BS 1414/API 603/API 6D
  • Features : Bolted Bonnet, OS & Y Construction, Flexible Wedge/Solid Wedge, Renewable Seat/Welded Seat Ring
  • Size : 1/2" to 2" Screwed End/Socket Weld Ends
  • MOC : Carbon Steel/Stainless Steel or Alloy Steel
  • Operation : Manual/Pneumatic/Electrical
  • Oil & Gas Exploration & Production
  • Refineries and Petrochemical Plants
  • Power Generation Facilities
  • Steam and Boiler Systems
  • High-Pressure Utility Lines
  • Chemical Processing Plants
  • Offshore Platforms
  • Process Piping Systems
  • Instrumentation and Small Bore Lines
