Strainers

T Type Strainers

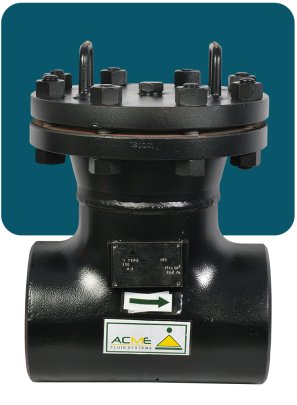

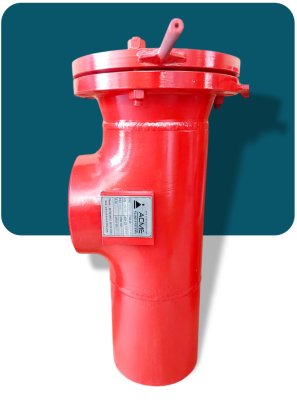

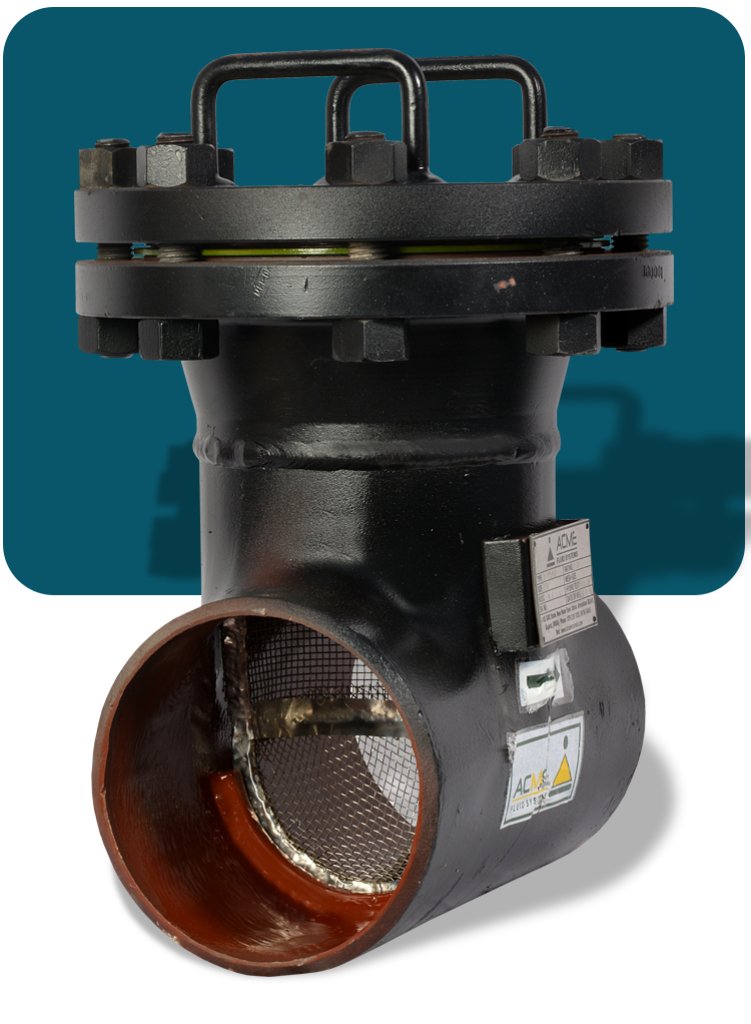

Flanged/Buttweld T Type Strainer T Type Strainers

ACME FLUID SYSTEMS is one of the top contributors for Flanged end T type strainers in India. T Type strainers derive its name from the shape of its configuration that looks like “T”. They are compact in size and shape and are used in applications where there is space crunch. They are widely used in refineries and Petrochemical applications. Size: 2”- 60” (Flanged ends, Butt weld ends) Rating: 150# to 2500#
Size: 2”- 60” (Flanged ends, Butt weld ends) Rating: 150# to 2500#

T-Type Flanged Drawing
Download
T-Type Flanged Drawing
Download
Let’s Connect

Product Video

ACME FLUID SYSTEMS is one of the top contributors for Flanged end T type strainers in India. T Type strainers derive its name from the shape of its configuration that looks like “T”. They are compact in size and shape and are used in applications where there is space crunch. They are widely used in refineries and Petrochemical applications.
Size: 2”- 60” (Flanged ends, Butt weld ends) Rating: 150# to 2500#

  • Low weight
  • Compact size
  • Bottom plug for waste disposal
  • Low filtration area
  • Made out of Forged Tee and Flanges
  • Hinged cover or davit assembly for easier maintenance
  • Drain Valves
  • P Tapings/ Gauge
  • High pressure capabilities
  • Different Drilling templates (ASME/DN/BS/IS)
  • Magnetic Screen Insert
  • ASME Code construction
  • European standards – DIN/PED available
  • Coatings and linings available upon request
  • Various flow configurations available
MOC & Parts List
No. Description Material Material Material
1 Body  SA 234 GR.WPB A 403 GR. WP 304 A 403 GR. WP 316
2 Body Flange ASTM A 105 A 182 GR. F 304 A 182 GR. F 316
3 Cover Flange ASTM A 105 A 182 GR. F 304 A 182 GR. F 316
4 Element  SS 304 / 316 SS 304 / 316 SS 304 / 316
5 Stud & Nut ASTM A 193/A 194 GR. B7/2H (ZINC PLATED)
6 Gasket SS 316 SPIRAL WOUND GRAPHITE FILLER
7 Drain /Vent ASTM A 105 A 182 GR. F 304 A 182 GR. F 316

  1. Oil & Gas Industry



Used extensively in upstream, midstream, and downstream operations.



  • Protect pumps, compressors, and control valves
  • Remove scale, rust, sand, and pipeline debris
  • Used in crude oil, natural gas, and refined product lines



  1. Petrochemical & Chemical Plants



  • Protect reactors and heat exchangers from solid contamination
  • Maintain product purity
  • Used in handling corrosive or high-temperature fluids



  1. Power Generation Plants



  • Installed in boiler feedwater lines
  • Protect turbines and cooling systems
  • Used in steam and condensate pipelines



Common in thermal and combined cycle plants.



  1. Water & Wastewater Treatment



  • Remove suspended solids from raw water intake
  • Protect pumps and flow meters
  • Used in industrial effluent systems



  1. HVAC Systems



  • Protect chillers, pumps, and heat exchangers
  • Remove debris in chilled and hot water circuits
  • Common in large commercial buildings and district cooling systems



  1. Marine & Shipbuilding



  • Used in ballast systems
  • Protect seawater cooling lines
  • Handle high debris loads in offshore environments



  1. Pulp & Paper Industry



  • Remove fibers and solid particles
  • Protect process pumps and spray nozzles



  1. Food & Beverage Industry



  • Protect processing equipment from scale and debris
  • Used in non-hygienic utility lines (steam, CIP return, water lines)
