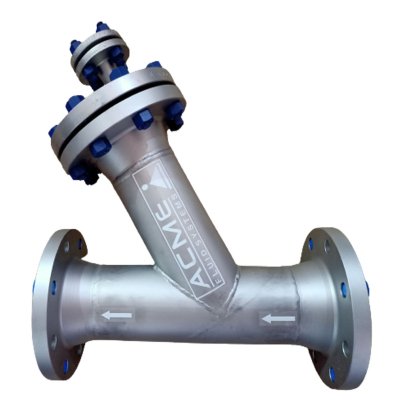

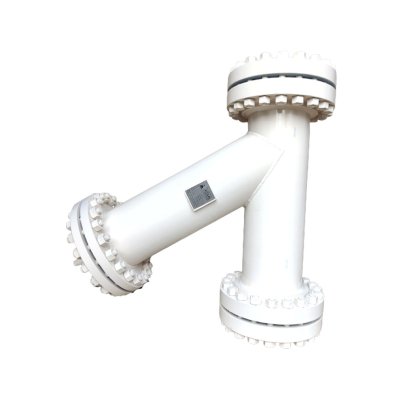

A Y type strainer is a pipeline filtration device designed to remove unwanted solids from liquids, gases, or steam. Its Y-shaped body allows debris to collect in a mesh screen while maintaining smooth flow with minimal pressure drop. Fabricated Y type strainers are custom-built (rather than cast) and are typically used for larger sizes, higher pressures, special materials, or specific industrial requirements. Fabricated Y type strainers are critical components across industries such as oil & gas, petrochemical, power generation, water treatment, HVAC, marine, and food processing. Their primary function is to protect expensive equipment by filtering out debris while maintaining system efficiency and reliability.
Having the involvement of “Y Type Strainers” in name, it is needless to say that fabricated y type strainers are most suitable for inclined or horizontal pipelines where dust is hard to remove from the flowing fluids. This type of strainers is cylindrical in shape so it can be fixed properly in the pipe to provide useful filtration. Being an inexpensive kind of strainer, it is used in millions of pipelines to remove debris from fluids. Fabricated Y type strainers are made up of Mild steel, stainless steel or alloysteel. It has a bolted cover along with blow off drain connections. Having flanged ends/butt-weld ends of the dimension of an inch to 24 inches, it is compact in size. Although it is easy to install, its size doesn’t allows it to hold high amount of dirt. When it comes to pressure, the rating lies in between 150# to 1500# and the strainer doesn’t affect it while removing dirt with process stream. Our fabricated Y type strainers are easy to carry and install because of its low weight and compact size. You also get options to choose the most suitable type of fabricated strainer for your pipelines. We make larger size and pressure of fabricated strainers available for prospective clients on request. Size: 2”- 24” (Flanged ends, Butt weld ends) Rating: 150# to 2500#
1.Design & Manufacturing Standards
Fabricated Y Type Strainers are generally designed and manufactured in accordance with:
ASME B31.3 – Process Piping
ASME Section VIII Division 1 – Pressure design (when applicable)
ASME B16.5 – Flanged connections
ASME B16.25 – Butt weld ends
API 598 – Inspection & testing
MSS SP-75 – Fabricated fittings
NACE MR0175 – Sour service compliance
2.Size Range & Pressure Rating
2” (50NB) to 48” (1200NB)
Larger sizes available on request
ASME Class Ratings : 150# to 2500#
Custom high-pressure designs available as per project requirements.
3. Body Construction
Type:
Welded fabricated construction
Seamless pipe + formed branch
Fully radiographed weld joints (optional)
Body Materials:
Carbon Steel (ASTM A106 Gr. B / A516 Gr. 70)
Stainless Steel (SS304, SS316, SS316L)
Duplex / Super Duplex
Alloy Steel (F11, F22, F91)
Special alloys upon request
4. End Connections
Flanged (RF / RTJ)
Butt Weld (BW)
Custom ends available
5. Straining Element (Screen)
Material:
Stainless Steel 304 / 316
Duplex SS
Monel / Hastelloy (for corrosive service)
Mesh Size:
20 mesh to 500 mesh
Perforated screen: 1 mm to 10 mm hole size
Custom micron rating available
Screen Type:
Single-layer
Multi-layer reinforced mesh
Perforated sheet with mesh lining
6. Gasket & Sealing
Spiral wound gasket (SS + Graphite)
PTFE gasket (chemical service)
CAF (Compressed Asbestos Free) gasket
7. Testing & Inspection
Hydrostatic test (1.5 × design pressure)
Pneumatic test (if specified)
Radiography (RT) of weld joints
Dye Penetrant Test (DPT)
Positive Material Identification (PMI)
Third-party inspection (TPI) as per project requirement
8. Surface Protection
Internal:
Epoxy coating (water service)
Pickling & passivation (SS)
External:
Primer coating
PU paint
Hot dip galvanizing (optional)
9. Operating Parameters
Design Temperature:
-29°C to 425°C (standard carbon steel)
Higher temperatures for alloy steels
Design Pressure:
As per ASME pressure class
1. Oil & Gas Industry
Fabricated Y strainers are widely used in upstream, midstream, and downstream operations to protect critical equipment.
Applications include:
Pump suction and discharge lines
Compressor protection
Metering systems
Fuel oil and lubrication systems
Offshore platforms and refineries
They are often fabricated in carbon steel, stainless steel, or alloy steel for high-pressure and high-temperature service.
2. Petrochemical & Chemical Plants
In chemical processing plants, strainers prevent contamination and equipment damage.
Used for:
Reactor feed lines
Heat exchanger protection
Cooling water systems
Corrosive fluid handling
Fabricated designs allow the use of special alloys (e.g., duplex, Hastelloy) for aggressive chemicals.
3. Power Generation Plants
In thermal, nuclear, and combined-cycle plants, Y strainers protect turbines and auxiliary equipment.
Common applications:
Steam lines
Condensate systems
Boiler feed water lines
Fuel gas supply systems
Fabricated units are preferred for high-pressure steam applications.
4. Water Treatment & Desalination
Used to remove suspended solids and debris from water systems.
Applications:
Raw water intake
Pump protection
Irrigation systems
Fire water systems
Large-diameter fabricated strainers are common in municipal and industrial water networks.
5. HVAC & Building Services
Installed in commercial and industrial buildings to protect mechanical systems.
Used in:
Chilled Water Lines
Hot Water Circulation
Cooling Towers
Steam Heating Systems
They help prevent fouling and reduce maintenance costs.
6. Marine & Shipbuilding
Fabricated Y strainers are installed onboard ships for:
Ballast water systems
Engine cooling water lines
Fuel oil systems
Bilge systems
They are often designed to meet marine standards and class certifications.
7. Food & Beverage Industry
Used where fluid cleanliness is important.
Applications:
Process water filtration
CIP (Clean-in-Place) systems
Syrup and liquid food processing
Stainless steel fabricated strainers ensure hygiene and corrosion resistance.
Why Choose Fabricated Y Type Strainers?
Fabricated designs are preferred when:
Large pipe diameters are required
High pressure or temperature service is involved
Special materials are needed
Custom screen mesh sizes are required
Project specifications demand non-standard dimensions
They offer flexibility, durability, and suitability for severe service conditions.
