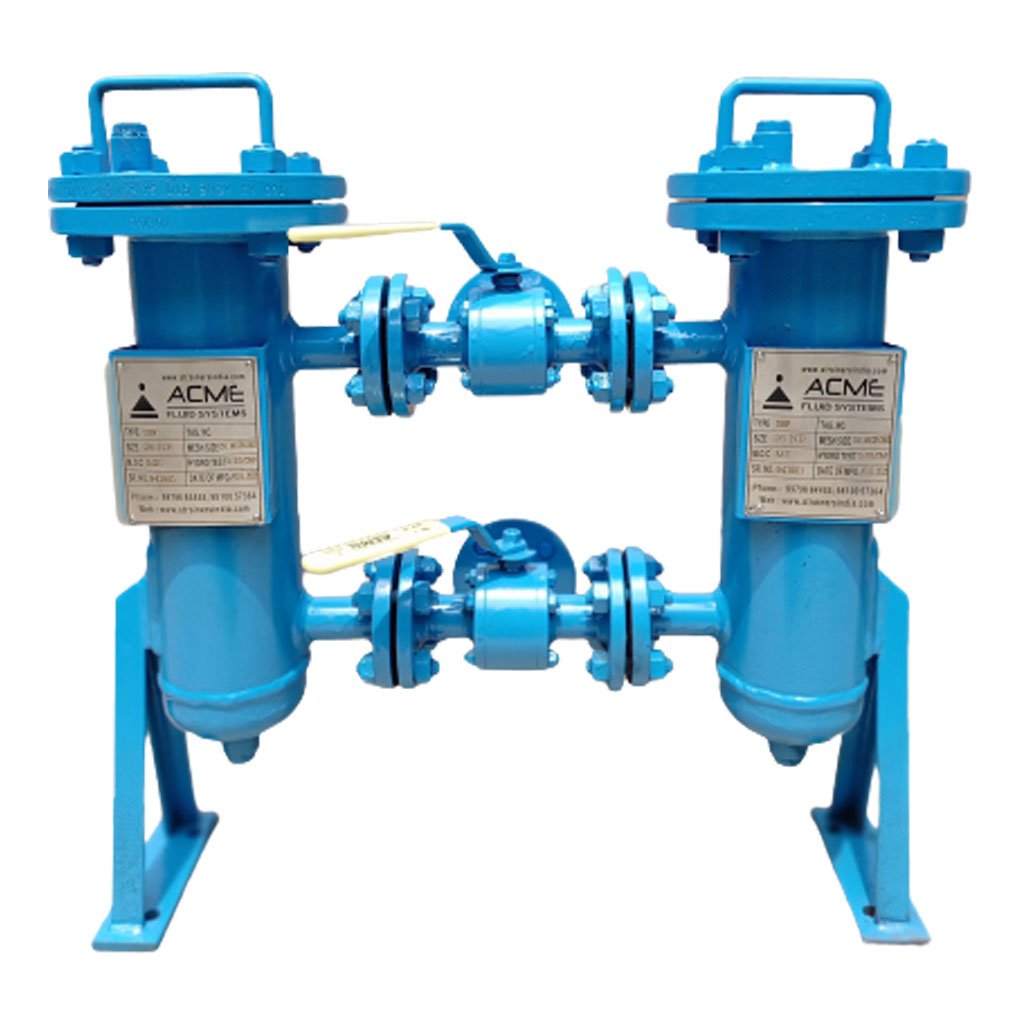

Fabricated DBF With 3-Way Ball Valve Duplex Basket Strainers Duplex Basket Strainers

A Duplex Basket Strainer with three-way ball valves is an advanced member of the double basket strainer family. Like all double basket strainers, it allows for continuous operation by enabling the changeover between baskets when one becomes filled with debris or solid contaminants. Duplex basket strainers are used in applications where continuous flow is required and system shutdown for cleaning is not desirable. Since one basket can operate while the other is being cleaned, they are ideal for critical processes.

Let’s Connect

Product Video

This model is considered an upgraded version due to the integration of three-way ball valves. These valves regulate fluid flow, ensuring consistent pressure while directing the fluid to the selected basket for effective solid particle collection. Although the valves facilitate connection between ports, all ports cannot be connected simultaneously.

The system operates efficiently within a pressure range of 150# to 300#. The three-way ball valves can be operated either manually or electronically, depending on client requirements and operational preferences.

We also offer customized modifications to our double basket strainers to meet specific customer blueprints and application needs.

Size: 1" to 36"

Rating: 150# to 2500#

Continuous flow, No need to stop systems for cleaning
Low Pressure Loss
Removable Filter element
Top removal of screen
Wire mesh
Alteration of Duplex Basket Strainer

Hinged cover or davit assembly for easier maintenance
Drain/Vent Valves
P Tapings/ Gauge
Back-flushing system for manual
Steam jacket for highly viscous fluids
Rotated or offset nozzle placement
High pressure capabilities
Coatings and linings available upon request

MOC & Parts List
No.	Description	Carbon Steel	Stainless Steel	Stainless Steel
1	Body	MS/CS	SS 304	SS 316
2	Cover	MS/CS	SS 304	SS 316
3	Element	SS 304	SS 304	SS 316
4	Stud & Nut	IS 1367	IS 1367 (ZINC PLATED)	IS 1367 (ZINC PLATED)
5	Gasket	NON ASBESTOS
6	Drain	ASTM A 105	ASTM A182 F304	ASTM A182 F316
7	Vent	ASTM A 105	ASTM A182 F304	ASTM A182 F316
8	Ball Valve	ASTM A 216 Gr. WCB	ASTM A 351 Gr. CF8	ASTM A 351 Gr. CF8M
