Strainers

Basket Strainers

Fabricated Basket Strainers Basket Strainers

Our Fabricated Simplex Basket Strainers are designed with a high-capacity basket configuration, making them ideal for applications requiring efficient debris handling and reliable equipment protection. Our Fabricated Simplex Basket Strainers combine durability, efficiency, and ease of maintenance, making them a reliable solution for protecting critical equipment in industrial fluid systems.

T-Type Flanged Drawing
Download
Let’s Connect

Product Video

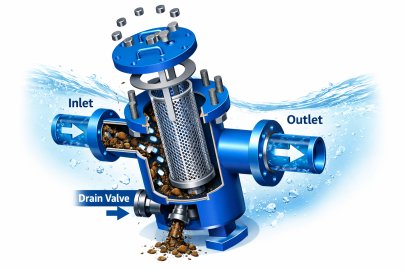

Being a member of the simplex basket strainer, fabricated simplex basket strainers have a basket shaped design with a huge capacity of storing debris. Made up of stainless steel or carbon steel, this type of strainers has a slant top basket design. The design helps the flow of fluid technically because the slant top maintains low pressure drops. When it comes to the weight, fabricated simplex basket strainers weigh lesser than other basket strainers. Due to low weight, labours find it easier to remove the slant top for cleaning purposes.
A major turn on of this basket strainer is the optional presence of back -flush or backwash option. It works in a systematic way without shutting down the system when there are heavy solid particles in the pipeline. An on/off back-flush valve is installed in the strainer’ bottom area and this opens when a huge amount of debris gets accumulated at the bottom. Apart from back-flush, we also offer various other modifications on basket strainers to provide the most suitable product to our clients.
Size: 2”- 60” (Flanged ends, Butt weld ends)
Rating: 150# to 2500#



  • Straight through flow design
  • Low Pressure Loss
  • Slant top basket design
  • Basket perforations from 1/32? to 1?
  • 20 to 400 mesh linings for fine straining applications
  • Hinged cover or davit assembly for easier maintenance
  • Drain/Vent Valves
  • P Tapings/ Gauge
  • Back-flushing system for manual
  • Steam jacket for highly viscous fluids
  • Rotated or offset nozzle placement
  • High pressure capabilities
  • Plated Filter elements
  • Different Drilling templates (ASME/DN/BS/IS)
  • Magnetic Screen Insert
  • ASME Code construction
  • Brazilian NR-13 available
  • European standards – DIN/PED available
  • Coatings and linings available upon request
MOC & Parts List
No. Description Carbon Steel Stainless Steel Stainless Steel
1 Body MS/CS SS 304 SS 316
2 Cover MS/CS SS 304 SS 316
3 Element  SS 304 SS 304 SS 316
4 Stud & Nut IS 1367  IS 1367 (ZINC PLATED)  IS 1367 (ZINC PLATED)
5 Gasket  NON ASBESTOS
6 Drain Plug  ASTM A 105 ASTM A182 F304 ASTM A182 F316

  1. Oil & Gas Industry



Used to protect critical process equipment and ensure fluid cleanliness in:



  • Crude oil transfer lines
  • Refinery processing units
  • Offshore platforms
  • Produced water treatment systems



Common in facilities operated by companies like Saudi Aramco and Shell.



  1. Power Generation



Protects cooling water systems and process lines in:



  • Thermal power plants
  • Nuclear plants
  • Combined cycle power stations



Frequently installed in plants operated by utilities such as General Electric energy systems.



  1. Chemical & Petrochemical Plants



Prevents debris from damaging:



  • Reactors
  • Heat exchangers
  • Pumps
  • Spray nozzles



Widely used in petrochemical complexes like Reliance Industries Limited refinery units.



  1. Water & Wastewater Treatment



Used for:

  • Raw water intake filtration
  • Cooling tower systems
  • Industrial wastewater treatment
  • Municipal treatment plants



Common in large municipal systems such as those managed by Singapore PUB.



  1. Food & Beverage Industry



Ensures product purity in:

  • Syrup lines
  • Beverage processing
  • Dairy plants
  • Edible oil processing



Helps maintain hygiene standards required by organizations like U.S. Food and Drug Administration.



  1. Pulp & Paper Industry



Removes fibers and debris from:

  • White water systems
  • Chemical recovery lines
  • Process water circuits



  1. Marine & Shipbuilding



Used in:

  • Ballast water systems
  • Engine cooling water lines
  • Seawater intake systems



Installed on vessels built by companies such as Hyundai Heavy Industries.



Why Fabricated Basket Strainers Are Chosen



Industrial fabricated models are preferred when:



  • Pipe sizes are large (DN 200 and above)
  • High flow rates are required
  • Custom materials are needed (SS316, duplex, carbon steel)
  • High pressure ratings are required
  • Special design codes apply (ASME, ANSI)
