Y Type strainers derive its name from the shape of its configuration that looks like “Y”. It is very useful when it comes to protecting pumps and compressors because the dirt or debris present in the latter is collected in the strainer without bargaining with the pressure drops. The Y type strainers are most suitable for horizontal and vertical pipelines where the debris is difficult to be removed from the liquid or gas. Found in thousands of pipelines, this strainer is the most economic and common for permanent use.
Cast Y Type Strainers are one of the most common strainers present in the pipelines to handle small particles of dust. It is suitable for removing the debris away from the pipeline in a systematic manner without causing any harm to the pipeline. As the name highlights, Cast Y Type strainers are basically made up of cast steel. Apart from it, stainless steel or alloy steel acts as the alternative for each other on several occasions. When it comes to dimensions of Cast Y Type strainers, its screwed ends/socket weld ends is 1/4 inch to 2 inches. Therefore, it has a compact size that can fit various types of pipelines comfortably. Pressure rating of Cast Y Type strainers is 150#. Acme Strainers are Sturdy Have Filtration area more than 4 times, wall thickness which is as per API 600 an the ease of installation it renders due to compact size and design.
Size: ¼”- 2” ( Screwed, Socket weld)
Options:
- Screwed Ends / Socket weld ends
- P Tapings/ Gauge
- Drain Valves
- Pleated Filter element
- Magnetic Screen Insert

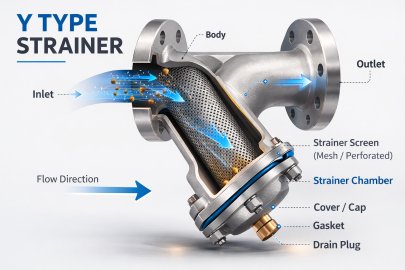

Cast Iron Y Type Strainers are essential components in pipeline systems designed to remove debris, solid particles, and impurities from flowing liquids. The "Y" shape of the strainer body allows for efficient filtration, capturing unwanted particles and preventing them from damaging downstream equipment such as pumps, valves, and meters.
Key Features:
Material: Constructed from high-quality cast iron, these Y Type Strainers offer durability and resistance to corrosion, making them suitable for a wide range of applications.
Design: The Y-shaped configuration provides a large filtration area, reducing the frequency of maintenance and ensuring a more effective removal of impurities. The strainer is designed to handle high flow rates while maintaining low pressure drop.
Screen/Mesh: Equipped with a stainless steel or other corrosion-resistant mesh/screen, the strainer effectively captures particles of various sizes, preventing clogging and maintaining optimal system performance.
End Connections: Available with a variety of end connections such as flanged, threaded, or socket weld options, providing flexibility for integration into different piping systems.
Pressure Ratings: Engineered to withstand varying pressure conditions, these Y Type Strainers come with specified pressure ratings suitable for different industrial applications.
Sizes: Offered in a range of sizes to accommodate different pipeline requirements, ensuring compatibility with various flow rates and system specifications.
Easy Maintenance: The Y Type design allows for easy access and quick removal of the strainer basket for maintenance and cleaning, minimizing downtime and ensuring continuous system operation.
Applications: Suitable for a diverse range of industries, including but not limited to water treatment, petrochemical, chemical processing, power generation, and HVAC systems.
Compliance: Manufactured in accordance with industry standards and regulations, ensuring product quality and reliability. Certifications may include ISO, ANSI, ASTM, or other relevant standards.
Optional Features: Some models may come with additional features such as pressure gauges, drain valves, and vent connections, providing enhanced functionality and customization options.
These Cast Iron Y Type Strainers play a crucial role in maintaining the integrity and efficiency of fluid handling systems by preventing the entry of unwanted particles, ultimately contributing to the longevity and reliability of the entire pipeline infrastructure.
