Strainers

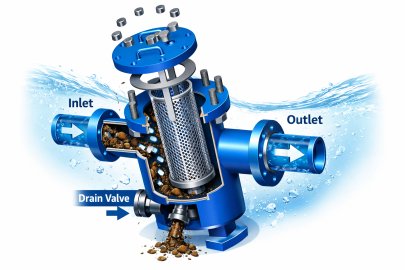

Cast Basket Strainer Basket Strainers

Our Cast Basket Strainers are robust, high-performance solutions engineered to protect critical equipment from solid contaminants in industrial fluid systems. Designed with precision and manufactured from high-quality cast materials, these strainers deliver reliable coarse particle removal while withstanding demanding operating environments.

Product Video

Reliable First Line of Defence

Acting as an essential safeguard for pumps, valves, heat exchangers, and other downstream equipment, Cast Basket Strainers prevent damage caused by debris and large particles. By removing contaminants early in the process, they help ensure smooth, uninterrupted system operation and reduce the risk of costly downtime.



Durable Cast Construction

Built for strength and longevity, the heavy-duty cast body provides exceptional durability and resistance to pressure, temperature variations, and harsh industrial conditions. This rugged construction ensures dependable performance in even the most challenging applications.



Efficient Basket Design

The precision-engineered basket effectively captures and retains coarse particles from fluid streams. Its optimized design maximizes flow efficiency while maintaining excellent filtration performance, enhancing overall system reliability.



Easy Maintenance, Minimal Downtime

Maintenance is simple and efficient. The strainers are designed for quick and easy access to the basket, allowing fast cleaning or replacement. This user-friendly design minimizes downtime and supports continuous, efficient operation.



Why Choose Our Cast Basket Strainers?

  • Effective coarse particle removal
  • Heavy-duty cast construction
  • Protection for critical equipment
  • Improved system reliability
  • Easy maintenance and serviceability
  • Suitable for a wide range of industrial applications



Invest in our Cast Basket Strainers to enhance the longevity, efficiency, and performance of your industrial processes. Built for durability and engineered for reliability, they are the ideal solution for protecting your most critical systems.

Size: 1”- 24” (Flanged ends, Butt weld ends)
Rating: 150# to 2500#





  • Robust cast construction for durability
  • Efficient removal of coarse particles
  • Suitable for diverse industrial applications
  • Easy maintenance and cleaning
  • Widest size range
  • Efficient design for optimal cost
  • Single basket design
  • Ideal for applications where shutdown for cleaning is acceptable
  • Quick Open Cover, Bolted Covers, Hinged Covers Design
  • Blow-off valve connection
  • Drain plug
  • Differential pressure gauge
  • Magnetic insert
  • Multiple Material Options
  • Wide Range of Pressure Ratings
  • Perforated baskets (standard coarse filtration)
  • Perforated + mesh lined baskets (finer filtration)
  • Custom micron ratings available
  • Available in Different End Connections (Flanged, Buttweld & Screwed Ends)
  • Different Drilling Templates (ASME/DN/BS/IS)
  • Special coatings (Epoxy / PTFE lining)
  • NACE compliance (for sour service)
  • CE Marking
  • IBR Certification
  • CRN Certification
MOC & Parts List
No. Description Carbon Steel Low-Temperature
Carbon Steel
Stainless Steel Stainless Steel
1 Body ASTM A216 WCB ASTM A352 LCB ASTM A351 CF8 ASTM A351 CF8M
2 Cover ASTM A216 WCB ASTM A352 LCB ASTM A351 CF8 ASTM A351 CF8M
3 Element  SS 304/316 SS 304/316 SS 304/316 SS 304/316
4 Stud & Nut  ASTM A 193 / 194 Gr. B7/ 2H  ASTM A 193 / 194 Gr. B7/ 2H ASTM A 193 / 194 Gr. B7/ 2H
(Zinc Plated)
ASTM A 193 / 194 Gr. B7/ 2H
(Zinc Plated)
5 Gasket SS316 Spiral Wound w/ Graphite
6 Drain Plug ASTM A105 ASTM A350 LF2 ASTM A182 F304 ASTM A182 F316





Standards
Scope Standard
Design* API 600 (Wall Thickness) B 16.34
End to End Screwed End BSPT ASME B1.20.1
Screwed End NPT ASME B1.20.1
End Flange ASME B16.5 RF/FF/RTJ
Face to Face (Flanged)   ASME B16.10
Pressure Testing   API 598
Flange Drilling   ASME B16.5 / B16.47
Visual Quality Standard    MSS SP-55
  • Oil & Gas
  • Chemical Processing
  • Water & Wastewater
  • Power Plants
  • HVAC Systems
  • Marine Applications
  • Food & Beverage (with SS construction)
