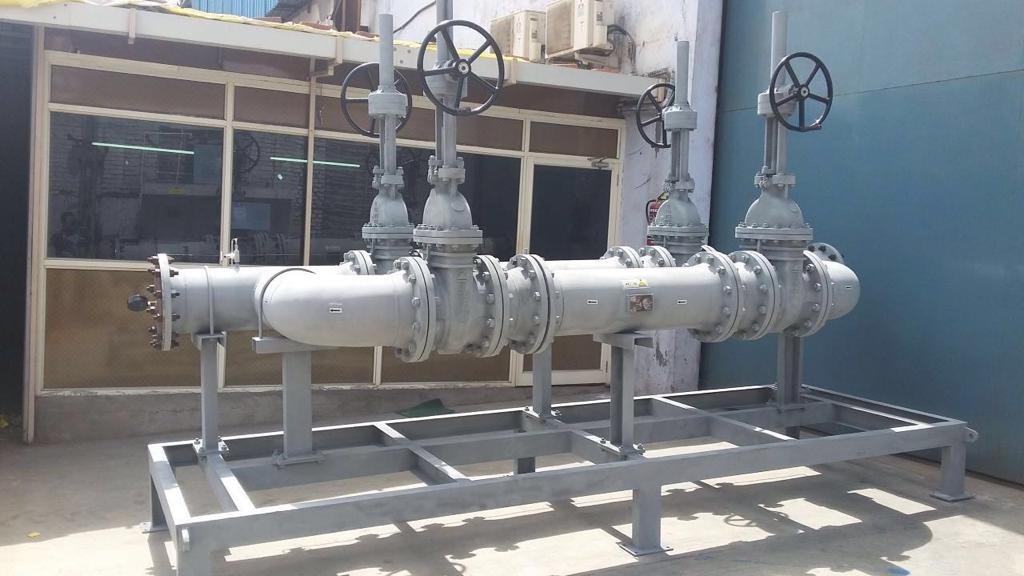

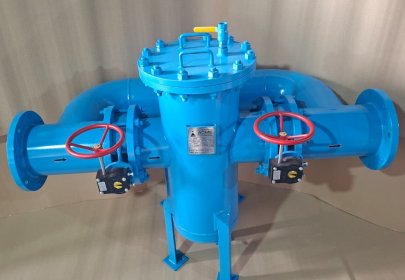

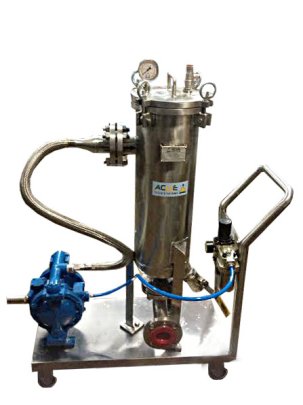

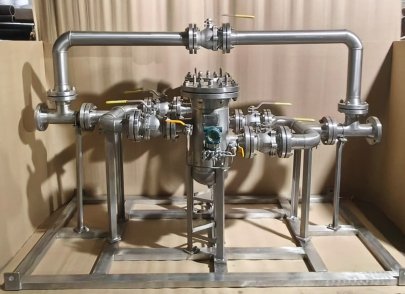

Complete Skid-Mounted / Trolley-Mounted Liquid Filtration Solution Our Basic Filtration System is a compact, integrated, and ready-to-operate filtration unit designed for efficient removal of suspended solids and contaminants from liquids. The system is mounted on a heavy-duty trolley or skid and includes a Bag Filter or Cartridge Filter housing, centrifugal pump, PLC-based control panel, piping, valves, and instruments. It is suitable for industrial process filtration, water treatment, chemical handling, and utility applications.
The Basic Filtration System is engineered for:
The system is supplied as a complete plug-and-play package with minimal installation requirements.
System Components
1. Bag Filter Housing
Designed for coarse to medium filtration applications.
Available Types:
Filter Rating: 1 to 200 Micron
2. Cartridge Filter Housing
Designed for fine filtration requirements.
Available Types:
Filter Rating: 0.5 to 100 Micron
3. Pump
4. PLC Control Panel
5. Trolley / Skid Structure
Why Choose Our Filtration Systems?
Customization Available
We design filtration systems based on:
| Parameter | Specification |
| Flow Rate | 1 m³/hr to 100 m³/hr (Customizable) |
| Filtration Rating | 0.5 Micron to 200 Micron |
| Operating Pressure | Up to 10 kg/cm² (Higher on request) |
| Operating Temperature | Up to 120°C (Depending on material) |
| MOC | SS304 / SS316 / MS / PP |
| Pump Type | Centrifugal / Magnetic / PD |
| Power Supply | 230V / 415V, 50 Hz |
| Control System | PLC-Based with Digital Display |
| Mounting | Trolley Mounted / Skid Mounted |
Our Basic Filtration System is widely used in:
Water Treatment
Chemical Industry
Pharmaceutical Industry
Food & Beverage
Oil & Gas
Paint & Coating Industry
