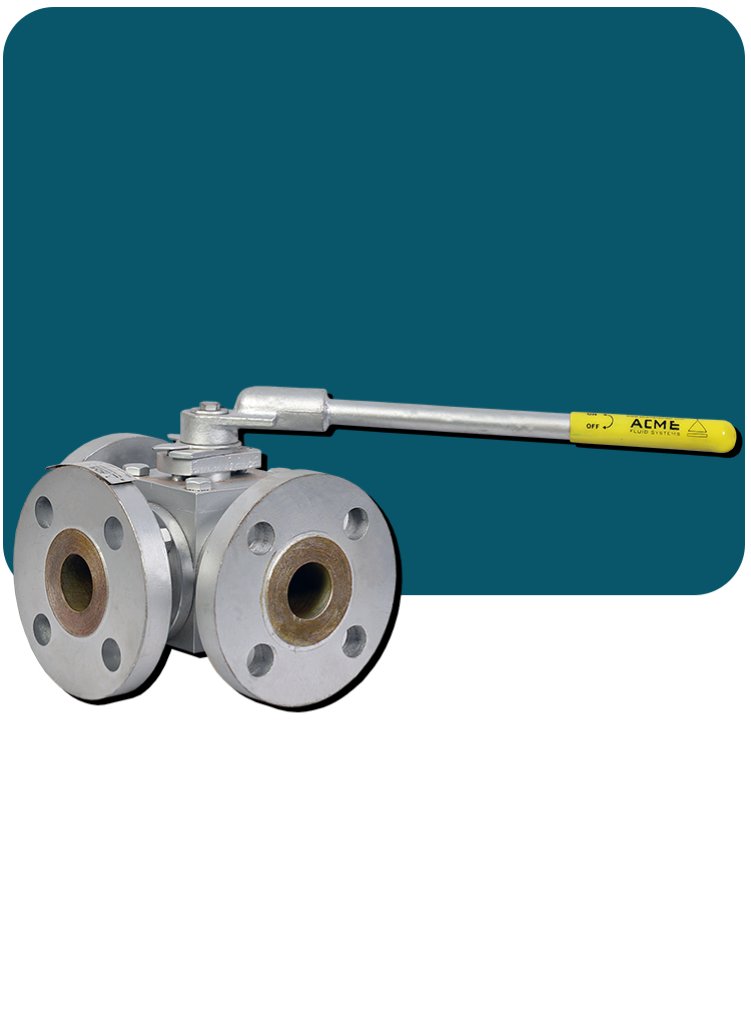

3-Way Ball Valve Screwed Multi-Port Ball Valve

Compact & Reliable Multi-Port Flow Control Solution Our Industrial 3 Way Ball Valves – Screwed End are designed for efficient flow diversion and mixing in compact piping systems. With threaded (screwed) end connections, these valves offer easy installation, secure sealing, and cost-effective maintenance, making them ideal for low to medium pressure industrial applications. Engineered in compliance with international standards such as American Petroleum Institute (API), American Society of Mechanical Engineers (ASME), and International Organization for Standardization (ISO), our threaded 3 way ball valves deliver durability, safety, and long operational life.

Let’s Connect

Product Video

Screwed End 3 Way Ball Valves feature threaded connections (NPT / BSP) for direct installation into pipeline systems without welding or flanging. These valves are primarily used for:

Flow diversion (one inlet to two outlets)
Flow mixing (two inlets to one outlet)
Line switching operations

Working Principle

The internal ball has either an L-shaped or T-shaped bore. By rotating the lever 90°, flow direction is changed or combined depending on the configuration. The threaded ends allow fast assembly and removal without hot work, making them suitable for maintenance-friendly installations.

Advantages of Screwed End Design

No welding required
Lower installation cost
Easy removal and replacement
Ideal for compact systems
Reduced downtime during maintenance

Threaded ends for quick installation
Compact and space-saving design
Bubble-tight shutoff
Low operating torque
Anti-static device
Blow-out proof stem
Fire-safe design (optional)
Corrosion-resistant materials
Easy maintenance (3-piece design)

Available Port Configurations

L-Port (Diverter Type)
T-Port (Mixing / Diverting Type)

Construction Type

2-Piece Design
3-Piece Design (Easy Maintenance Type)
Full Bore / Reduced Bore

Technical Specifications
Parameter	Specification
Size Range	¼” to 4” (DN8 – DN100)
Pressure Rating	Class 800 / 1000 WOG
Temperature Range	-20°C to +200°C (PTFE Seats)
End Connection	Screwed End – NPT / BSP / BSPT
Body Material	Stainless Steel (CF8 / CF8M), Carbon Steel
Ball Material	SS 304 / SS 316
Seat Material	PTFE / RPTFE / PEEK
Stem	Blow-Out Proof Design
Operation	Lever Operated / Actuated
Testing Standard	API 598 / ISO 5208
