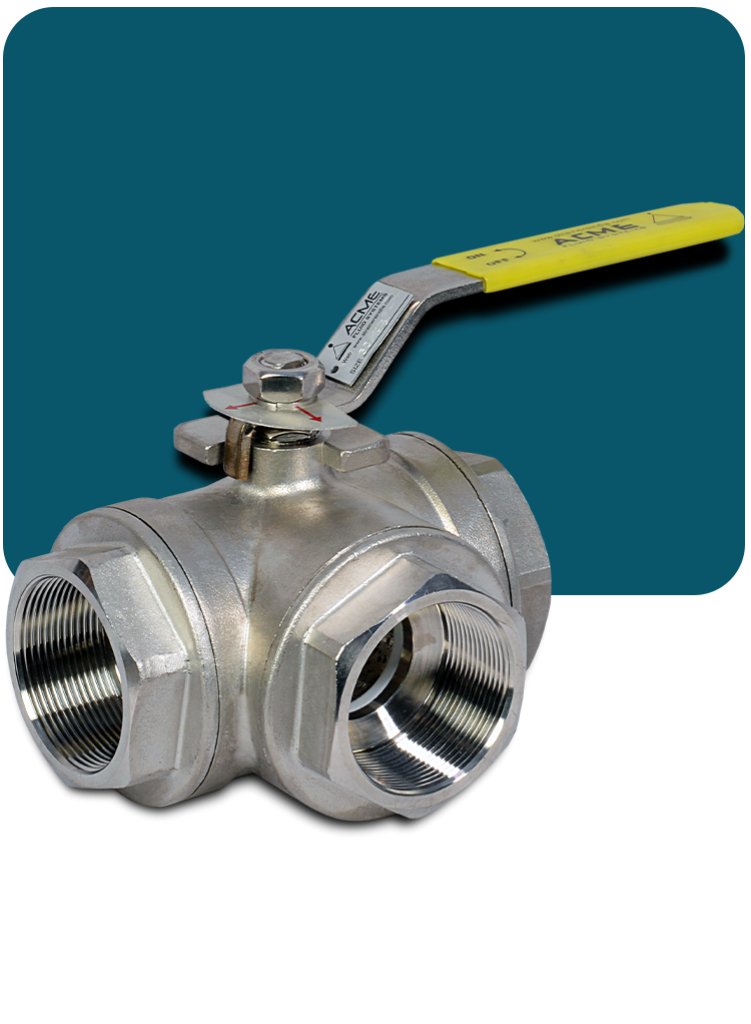

3-Way Ball Valve Flanged Multi-Port Ball Valve

Advanced Flow Diversion & Mixing Solutions Our Industrial 3 Way Ball Valves are engineered for precise flow control, diversion, and mixing applications across demanding industrial environments. Designed for high pressure, high temperature, and corrosive services, these valves provide reliable performance with bubble-tight shutoff and minimal maintenance. Manufactured in accordance with global standards such as American Petroleum Institute (API), American Society of Mechanical Engineers (ASME), and International Organization for Standardization (ISO), our 3 way ball valves ensure safety, durability, and long service life.

Let’s Connect

Product Video

3 Way Ball Valves are quarter-turn valves designed with three ports to allow:

Flow diversion (one inlet to two outlets)
Flow mixing (two inlets to one outlet)
Shut-off in multiple directions

Advantages of 3 Way Ball Valves

Eliminates need for multiple valves
Compact installation footprint
Reduced piping complexity
Improved operational efficiency
Lower maintenance cost
High reliability under demanding conditions

Working Principle

The internal ball has either an L-shaped or T-shaped bore. By rotating the ball 90°, flow can be redirected, combined, or shut off depending on the configuration. This makes 3 Way Ball Valves ideal for automated process control systems.

Compact multi-port design
Reduced piping and installation cost
Low operating torque
Blow-out proof stem
Anti-static device
Fire-safe design (API 607 compliant)
Bubble-tight shutoff
Long operational life
Corrosion-resistant construction

Available Configurations :

L-Port (Diverter Type) – Directs flow between two outlet ports
T-Port (Mixing or Diverting Type) – Allows mixing or simultaneous flow

Actuation Options :

Manual Lever
Worm Gear Operated
Pneumatic Actuator (Spring Return / Double Acting)
Electric Actuator
Hydraulic Actuator

Automation packages with solenoid valves, limit switches, and positioners available upon request.

Design Types

Floating Ball Design
Trunnion Mounted Design
Full Bore & Reduced Bore
Two-Piece / Three-Piece Construction

Technical Specifications
Parameter	Specification
Size Range	½” to 24” (DN15 – DN600)
Pressure Class	ANSI 150 to 600 (Higher ratings on request)
Temperature Range	-50°C to +400°C (depending on seat material)
End Connections	Flanged (RF/RTJ), Threaded (NPT/BSP), Socket Weld, Butt Weld
Body Materials	Carbon Steel (WCB), Stainless Steel (CF8/CF8M), Duplex, Alloy Steel
Ball Material	SS 304/316, Duplex, Chrome-Plated Steel
Seat Material	PTFE, RPTFE, PEEK, Metal Seat
Sealing	Soft Seated / Metal Seated
Operation	Lever Operated / Gear Operated / Actuated
Testing Standard	API 598 / ISO 5208
