Quick Opening Basket Strainer Basket Strainers

Technical Brochure

Basket strainers are the type of strainers bigger than the Y Type strainers. Simplex basket strainers can be of casted and fabricated depending upon various factors. The shape of simplex basket strainers is like a basket which has the capacity to store large amounts of debris. Also, the bigger size provides a proper platform for an effective filtration area. Although the weight of simplex basket strainers is quite heavy, its enormous size renders excellent capacity for holding dirt.

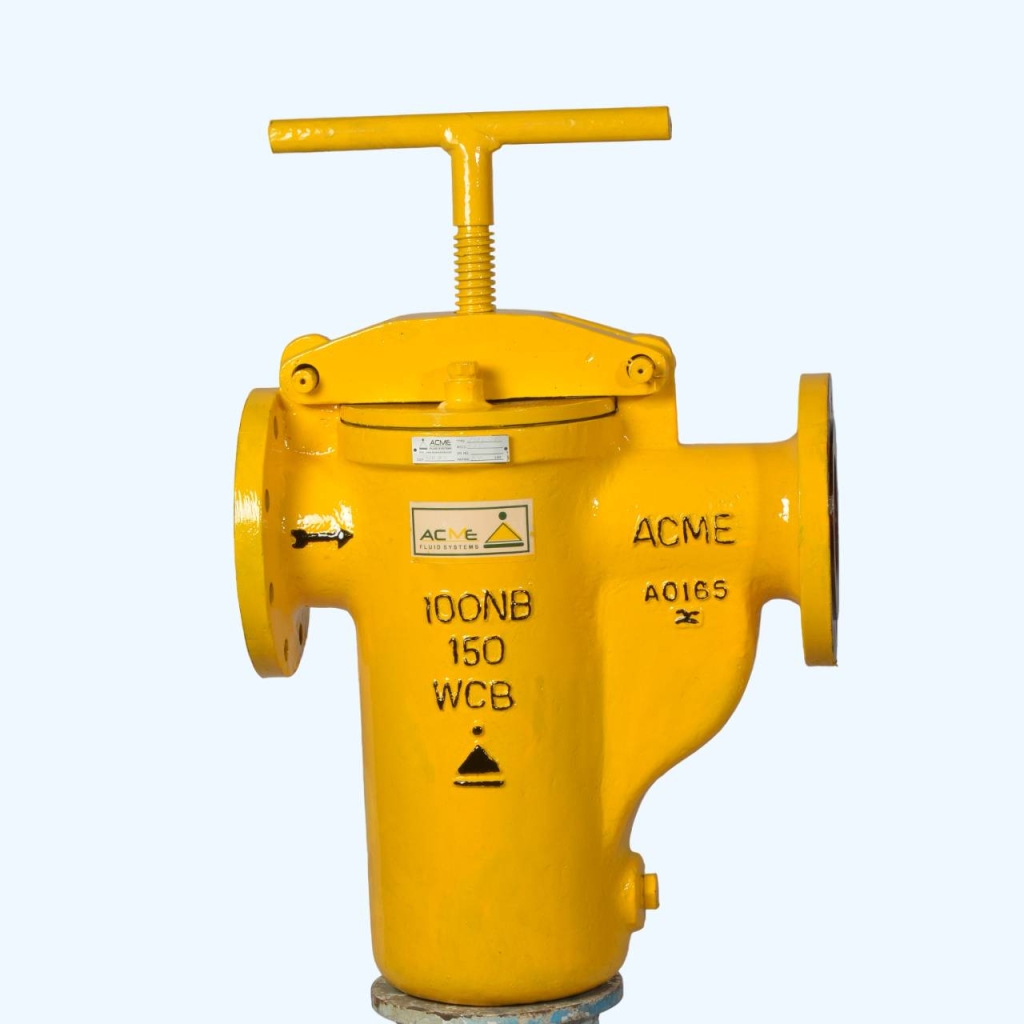

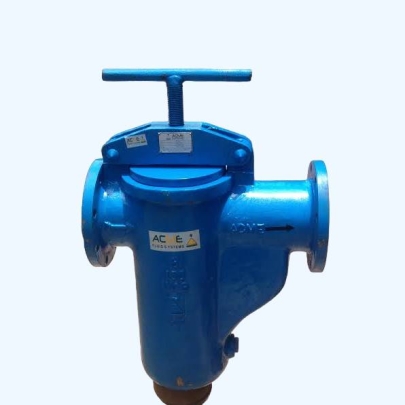

A quick opening casted simplex basket strainer is a strainer made up of robust cast. The main feature about our quick opening strainer is that it can be cleaned quickly. Primary feature reflected in its name, installation of quick opening strainer avoids the need for replacing the strainer frequently. Customized design is made available for our clients when requested in order to meet the needs. It has a threaded drain and the flow of fluids is from inside to outside. Dimension of its flanged ends/butt-weld ends is ½” inch to 12 inches. Giving importance to the pressure rating in pipelines, quick opening casted basket strainers have 150# .Providing expertise in strainers, we offer various options in the physical and technical features which can be selected as per the preference of our clients.
Size: ¼”- 2” ( Screwed, Socket weld)
Size: ½”- 12” (Flanged ends, Butt weld ends)
Rating: 150#

MAKE AN INQUIRY

Features:

  • Quick open cover-no tools required
  • Integrally cast housings
  • Flow is from inside to outside
  • Threaded drain
  • Large screen area ensures efficient filtration with low pressured drop

Options:

  • P Tapings/ Gauge
  • Drain/Vent Valves
  • Plated Filter element
  • Magnetic Screen Insert
  • Different Drilling templates (ASME/DN/BS/IS)
  • Special finish and Linings
  • Threading options (BSP/NPT)
